Compatibility Question: Ssd Form Factor

I want to buy a Team Group CX2 2.5" 2TB SATA III 3D TLC Internal Solid State Drive (SSD) T253X6002T0C101 - Because it's cheap. And I am broke. But the model it's replacing is a 3.5" 512GB SSD. Is the 2.5" compatible?

Actual Current PC:
ASUS ROG Strix GA15 Gaming Desktop PC, AMD Ryzen 7 5800X, GeForce RTX 3070, 32GB DDR4 RAM, 512GB SSD + 1TB HDD, Wi-Fi 5, Windows 10 Home, GA15DK-IB778 - Newegg.com

Let me know if the link doesn't load, it should.



It is totally compatible in terms of electrical (data and power) cables. It is also compatible in terms of the interface protocols (the computer will be able to use it just fine).

Your only potential problem will be physically "mounting" the 2.5" drive in place of the 3.5" drive.

Inspect the current mounting bay/bracket. It may already have the necessary mounting holes for the smaller drive, or your case may already support the smaller drive in a different mounting location. If not, you will need an adapter bracket.



From the "current PC" link:

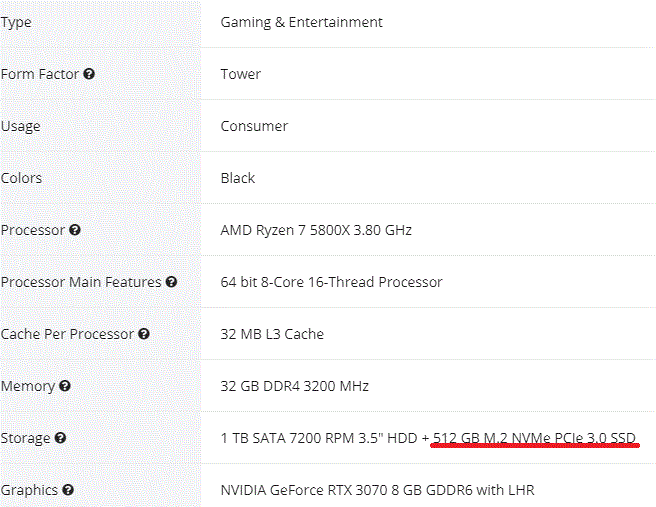

https://i.postimg.cc/jdc7RBsy/spex.gif
That is not an 2.5" SATA SSD. This would be a truer upgrade: https://www.newegg.com/team-group-mp33-2tb/p/N82E16820331431 Same brand, capacity and price range. No adapter needed.



Good catch!

Yeah, according to Just Playin's screen shot, your current SSD is a M.2 PCIe SSD. If you are looking to physically remove that SSD and replace it with a similar SSD, you will need one similar to the one he suggested.

HOWEVER, if you are looking to just "add" an additional SSD for more storage space, and if your current case does not support 2.5" SATA drives directly, you will need one of those adapters. You then will also need a SATA data cable from the drive to the motherboard, and a SATA power connection to the power supply. The power supply should (hopefully) have the necessary spare connection. SATA data cables are cheap and readily available. If you have a friend who tinkers around with computers, he/she probably has a few spare SATA data cables laying around.



Thanks boys, glorious as always. Currently the plan is to add the newbie for more space, and make it the C:// Drive, which seems like it has the slottery (that's my new word) for it, but if it gets here, and I'm completely wrong (this happens often) thanks to Just Playing, I know which one to get. You're my geeky heroes.
