How far can I overclock a Duron?

Discussion in 'Hardware' started by jimmy ray, Apr 16, 2005.

  1. jimmy ray

    jimmy ray Private E-2

    I have a 1.8GHz Duron,and was wondering how far I can overclock it to? Here are the components.

    AsRock K7V88 motherboard (Via chipset)
    256MB pc2700 ram (I think is called Hynix)
    350Watt power supply
    9200ATI card
    80Gig harddrive
    NEC DVD burner
    Windows xp

    I guess thats it. I would like to get it up to at least 2.5GHz. Is that possible?

  2. Rikky

    Rikky Wile E. Coyote - One of a kind

    Every cpu is different and the system its in makes even more difference you just have to keep pushing it untill it becomes unstable then back off,the main factors are cooling,stable voltage and how far your motherboard and memory will go,unless you unlock the cpu u will have to increase the fsb and you wont get that high with ddr2700. :)

  3. jimmy ray

    jimmy ray Private E-2

  4. jimmy ray

    jimmy ray Private E-2

  5. jimmy ray

    jimmy ray Private E-2

  6. MellowMan

    MellowMan First Sergeant

    Damn man that's awsome! :cool:

  7. crazybowlhead420

    crazybowlhead420 Private E-2

    may i ask what program u used to overclock it?

  8. jimmy ray

    jimmy ray Private E-2

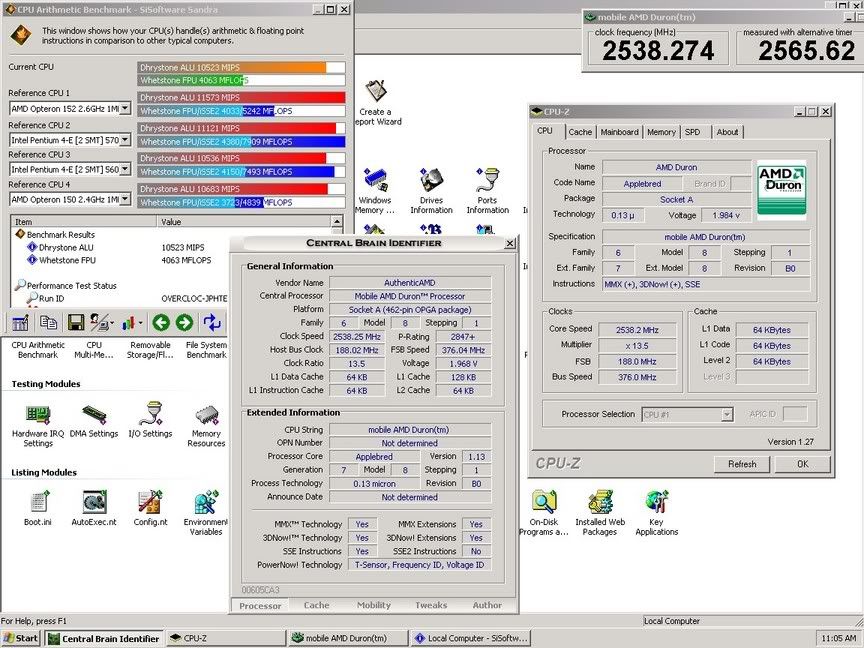

    Sorry I haven't responded,I have been in the process of moving,and lost my internet till July..I didn't use any program except the bios for my overclocking,so it made it a bit harder to get a nice oc. I was very limited by the options in the bios on this board to oc with so I did some hardware modifications on the cpu itself. I was limited by the voltage on the asrock board only able to be pushed up 10%,which basically meant,I couldn't exceed 1.6Volts :( I did used a pencil on the L-11 and found it allowed up to 2.0V+ .....

    http://img.photobucket.com/albums/v236/oicurafox2000/1.jpg
    http://img.photobucket.com/albums/v236/oicurafox2000/mobilemultimod.jpg
    http://img.photobucket.com/albums/v236/oicurafox2000/StartupVoltmods.jpg
    http://img.photobucket.com/albums/v236/oicurafox2000/multi.jpg
    http://img.photobucket.com/albums/v236/oicurafox2000/Enable256KbsL2cache.jpg

    I will go in to detail a bit more if anyone would like info on what I did..I will have more time to explain in a few days... :D
