Installing processor

I bought a new processor today and i opened my PC but i can't seem to get the bit off that covers the processor. Can anyone help? Its a Compaq Evo D510 UDST ultra slim.

http://kepfeltoltes.hu/081208/d510U_2_www.kepfeltoltes.hu_.jpg
http://kepfeltoltes.hu/081208/d510U_1_www.kepfeltoltes.hu_.jpg



The computer upgrade manual is available here:

http://h20000.www2.hp.com/bizsuppor...support/SupportManual/c01154719/c01154719.pdf

Althought this link didnt work properly for me, so just in case, here it is step-by-step

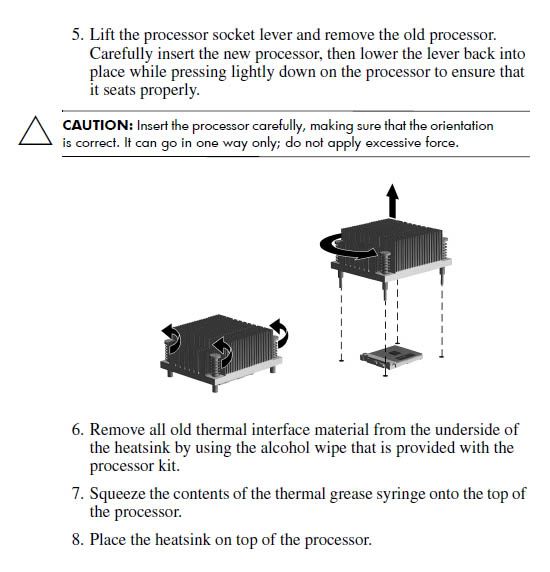

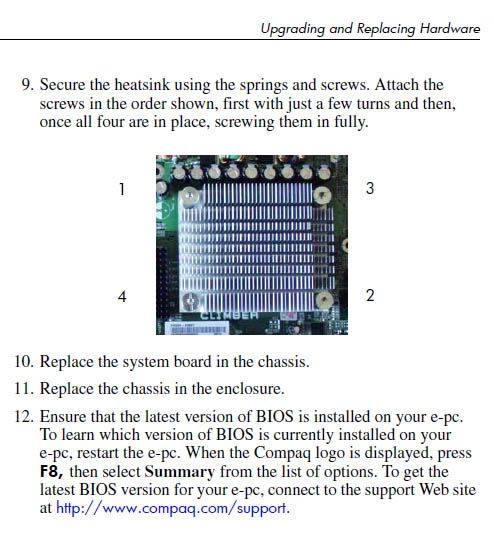

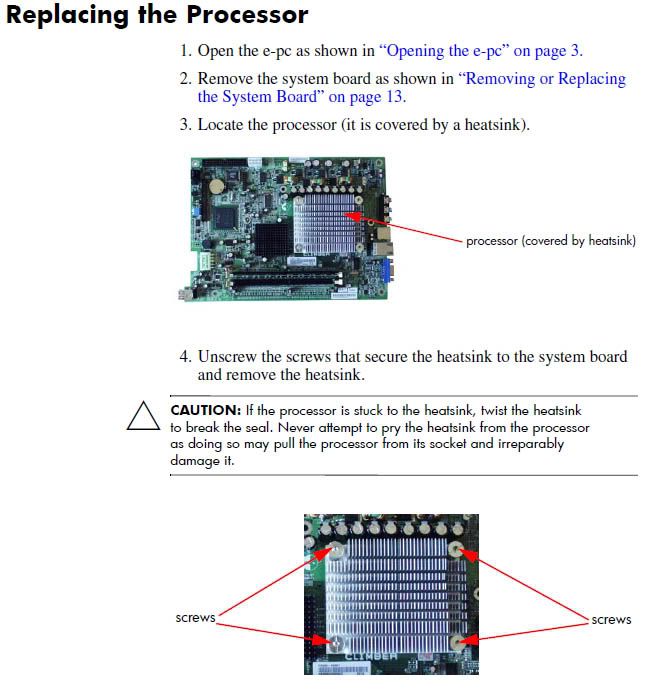

http://i238.photobucket.com/albums/ff268/loki25525/001.jpg
http://i238.photobucket.com/albums/ff268/loki25525/002.jpg
http://i238.photobucket.com/albums/ff268/loki25525/003.jpg



Hi Juke,

The heatsink compound dries out and sticks the heatsink to the Processor like glue. If you keep pulling on it the processor will come out of the locked socket with it and pins usually get bent. Unlatch the Heatsink/fan and twist it back and forth gently. It wont move far but, will break the bond between the heatsink and processor. It should then lift off easily. Mich's infor should help you with the rest of the job.

Good Luck, Jim



Got it, thanks.
